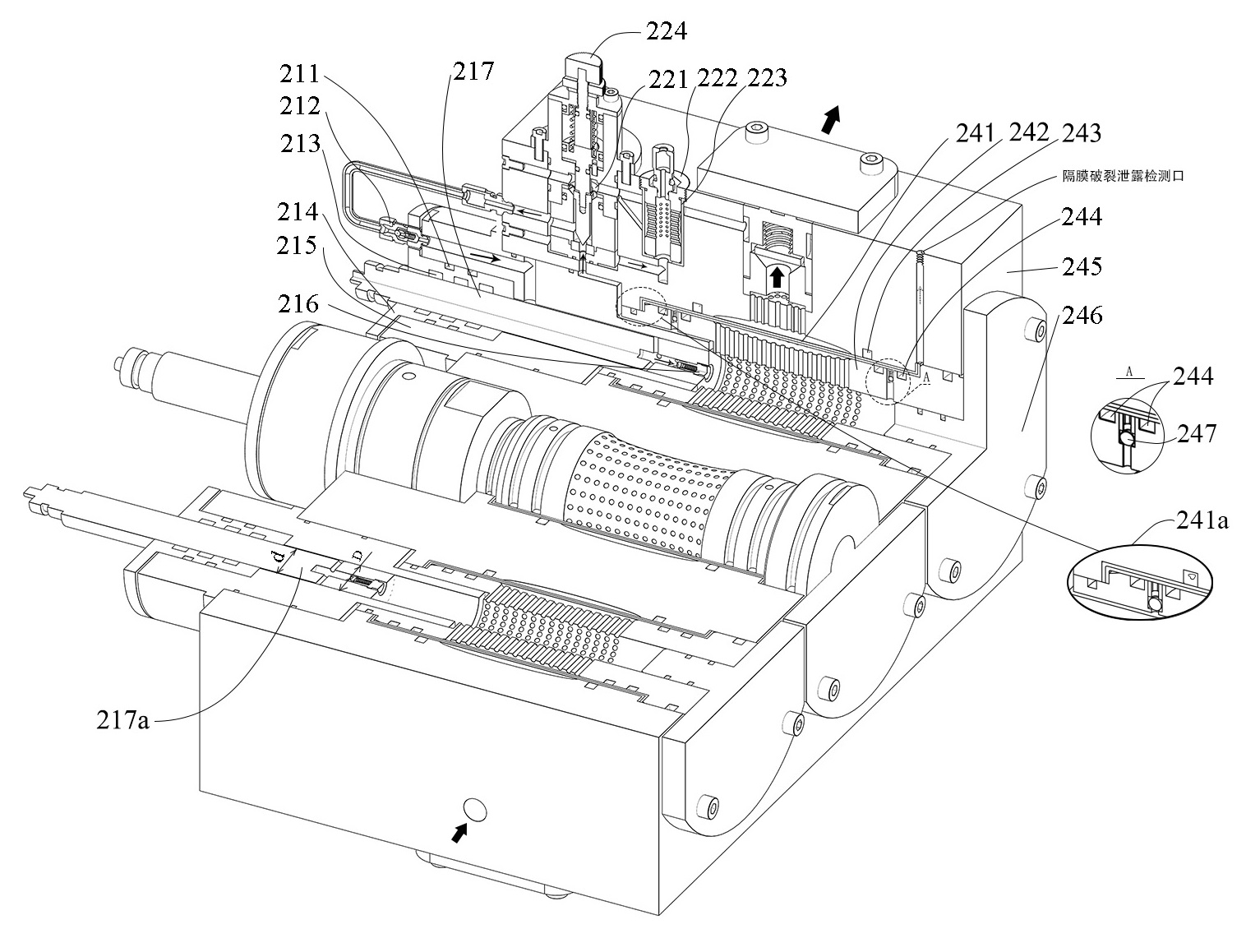

本发明公开了一种环状隔膜增压机，涉及增压机技术领域，包括增压机缸体内设有多腔体，增压机分为驱动端和液力端；驱动端处安装有曲轴连杆十字头组件，液力端处安装 有环状隔膜组件；环状隔膜组件包括内缸体、环状隔膜，环状隔膜外部的外缸体，且外 缸体安装有缸盖，腔体处设有进出口单向阀；内缸体的一端连通有隔膜缸体密封填料组 件，隔膜缸体密封填料组件包括液力柱塞缸套和液力柱塞，且液力柱塞与驱动柱塞连接， 液力柱塞上连通有补偿单向阀，腔体处组装有隔膜自适应溢流阀，且隔膜自适应溢流阀 的一端与补偿单向阀连通，此环状隔膜增压机创造性的用小直径的环状隔膜代替大直径 的圆形隔膜，解决了传统隔膜增压机圆形隔膜和增压缸体直径大结构布局难和限制板上 载荷大不利于轴向紧固问题，液力柱塞和补偿系统一体化结构解决了现有隔膜增压机的 油液补偿动力浪费问题。

专 利 号：ZL 2024 2 2593112.4 专利公告信息 授权公告号：CN 223190599 U



The invention discloses a circular diaphragm booster pump, which relates to the technical field of booster pumps. The booster pump cylinder is provided with multiple cavities, and the booster pump is divided into a drive end and a hydraulic end; a crankshaft connecting rod crosshead assembly is installed at the drive end, and a circular diaphragm assembly is installed at the hydraulic end. The circular diaphragm assembly includes an inner cylinder, a circular diaphragm, and an outer cylinder with a cylinder cover, with a one-way valve at the cavity for inlet and outlet. One end of the inner cylinder is connected to a diaphragm cylinder sealing filler assembly, which includes a hydraulic plunger cylinder sleeve and hydraulic plunger, and the hydraulic plunger is connected to the drive plunger. The hydraulic plunger is connected to a compensation one-way valve, and a diaphragm adaptive relief valve is assembled at the cavity, with one end of the diaphragm adaptive relief valve connected to the compensation one-way valve. This circular diaphragm booster pump creatively uses a small diameter circular diaphragm to replace a large diameter circular diaphragm, solving the traditional diaphragm booster pump's problems of large circular diaphragm and large booster cylinder diameter structure layout difficulties and the unfavourable issue of axial fastening due to large load on the limiting plate. The integrated structure of the hydraulic plunger and compensation system addresses the problem of fluid compensation power waste in existing diaphragm booster pumps.
